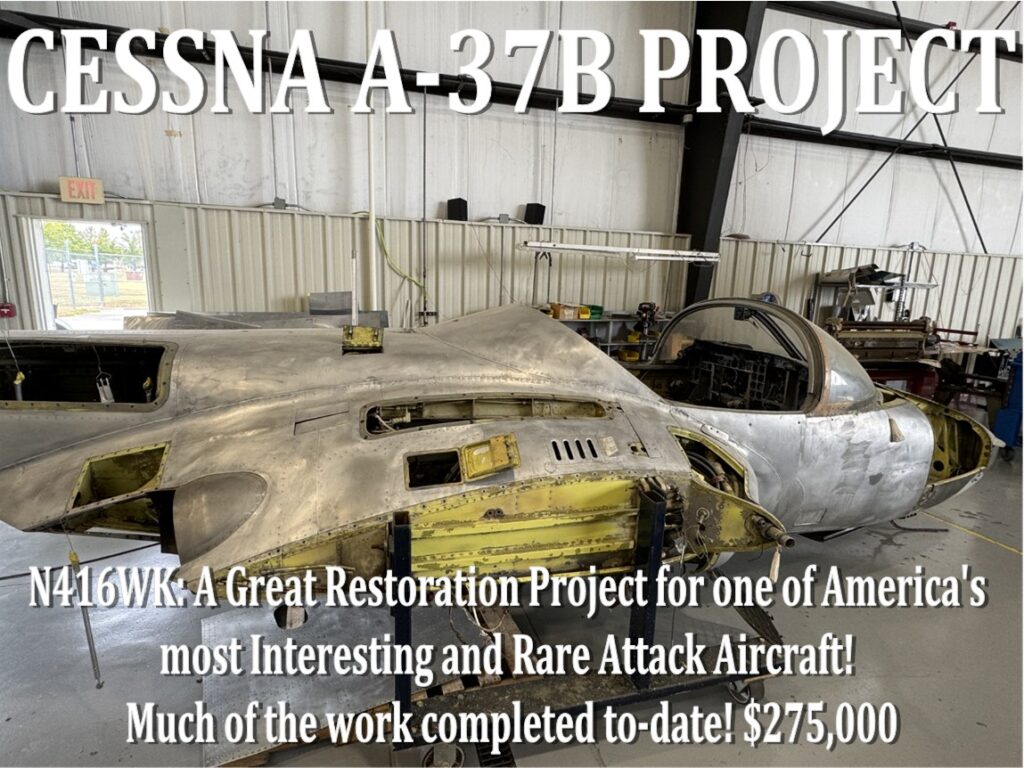

N416WK CESSNA A-37B “DRAGONFLY” PROJECT

N416WK CESSNA A-37B “DRAGONFLY” PROJECT Courtesy Aircraft Sales $275,000 Call (815) 229-5112, or Email Us Below: (815) 229-5112 Contact Us Description A GREAT RESTORATION PROJECT FOR ONE OF AMERICAS MOST INTERESTING AND RARE ATTACK AIRCRAFT.MUCH WORK COMPLETED TO DATE. Summary of Restoration Work completed to date: Paint stripping and minor repair to the fuselage, wings, empennage, and control surfaces Rebuild of one wing assembly (the other still needs to be done) this work includes: Reskin bottom of wing from flak damage Leading edge metal work repair Flaps repaired Replaced ½ of main spar Installed never used 1968 fuel tanks and all associated hoses, fittings, etc. These tanks have been pressure tested. Rebuild of one main gear assembly Replacement of pins, bushings, bolts, etc. (a replacement seal still needs to be sourced) Repainted the gear assembly Miscellaneous Information The other main gear and wing need to have work done on them similar to that which is already been done. The nose gear needs to be rebuilt Control surfaces – flaps, ailerons and elevators were sent to Alamo Aircraft in San Antonio, TX and have been repaired and rebuilt Parts/Engines- Original J-85-17 engines included but without records and therefore not usable. The owner has obtained a pair of GE CJ-610 engines that are included. This is the civil version of the J-85. These engines have been inspected by a repair shop and there was an estimate of $110,000 to return them to service. Firewall forward parts come with the project Includes two T37 Fuselages – demilled and suitable for parts Also included is an A-37A wing suitable for parts Flight Control and Wing Restoration   Left Aileron IRAN (in progress) Right wing and flight controls IRAN and Restoration (in progress) Repair of aileron fiberglass endcap (in progress) Performed right aileron IRAN (in progress) IRAN of right wing fuel compartment (in progress) Fabricated new access panels in gear well bay 2, bay 3, bay 5 IRAN on right flap (in progress) Additional wrk is in process by Code One Aviation. They would be pleased to work with a new owner to see the project to completion. Details Cockpits very complete and stockCanopy in good conditionEjections seats included(cold)Set of wing pylons includedSome miscellaneous extra parts includedSome stands and cradles are includedAircraft manuals and microfiche Basic Description The A-37 was an updated and strengthened version of the Cessna T-37 trainer. Major changes included- *Stronger wings.*Three  pylons on each wing.*Larger wingtip fuel tanks of 360 liters (95 US gal) capacity.*A General Electric GAU-2B/A 7.62 mm (0.300 in) “Minigun” Gatling-style machine gun, with   a rate of fire of 3,000 rounds/minute and 1,500 rounds of ammunition. The weapon was fitted in   the right side of the aircraft’s nose. A gunsight and gun camera were also fitted.*Better avionics for battlefield communications, navigation, and targeting.*Tougher landing gear for rough-field operation. *Installation of GE J-85 engines of 2400# thrust History Formerly operated by the US Air Force, the aircraft was given to Vietnamese AF. The aircraft was one of two A-37 aircraft that were illegally imported into the USA via Canada. The aircraft were seized in 1989 by US customs and given to the Wings of Eagles Museum in Elmira NY. After a holding period the Museum was given permission to sell the aircraft. The current owner purchased the aircraft from a museum, and it is now FAA registered.  Customs provided a full release on the aircraft enabling civilian ownership. Aircraft located in Southern IL area, Contact Courtesy Aircraft for a showing! SPECIFICATIONS SUBJECT TO VERIFICATION UPON INSPECTION. PRIOR SALE AND/OR REMOVAL FROM THE MARKET WITHOUT NOTICE. Inquire Today Regarding This Aircraft This aircraft is currently available for purchase. If you’re interested, don’t delay.  (815) 229-5112 ASK A QUESTION

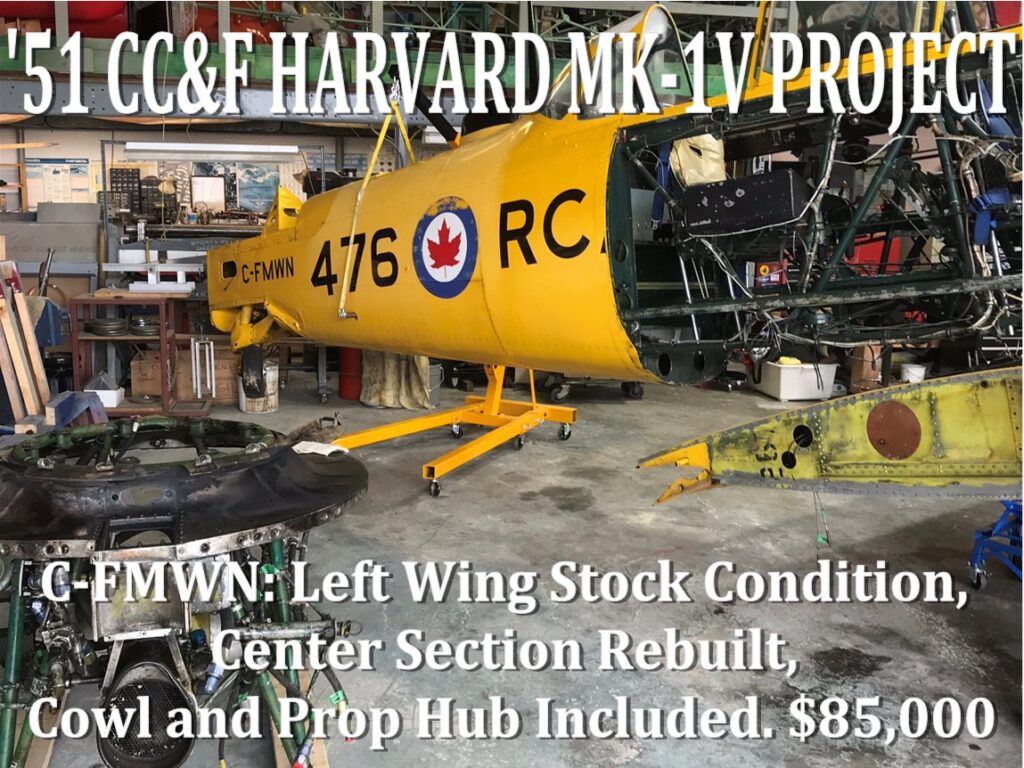

C-FMWN 1951 CC&F HARVARD MK IV- PROJECT

C-FMWN 1951 CC&F HARVARD MK IV- PROJECT S/N 20476 Courtesy Aircraft Sales $85,000 Call (815) 229-5112, or Email Us Below: (815) 229-5112 Contact Us Description Damage and Restoration Summary Right wing needs rebuiltLeft wing Stock condition- not damagedCenter section- rebuilt in jig by Sea-Land repair stationTailcone needs repair in the tailwheel attachment areaCowl in good conditionIncluded 12D40 prop hub and 1 blade Engine(s) No Engine included. Complete QEC is included Avionics King KY-96 CommNarco TransponderMode C EncoderIntercomAmeriKing AK-450 ELT Propeller(s) No Prop included 2013 accident summary. Directional control of the Harvard IV was lost when the right brake failed after touchdown on runway 25 at Boundary Bay Airport (CZBB). The aircraft departed the left side of the runway and the main gear collapsed. The aircraft came to rest in a nose-down attitude in a ditch. Both persons on board were uninjured. The aircraft was substantially damaged. Exterior Canadian Air Force Markings Interior Stock RCAF Military Configuration, dual panels Aircraft located near Vancouver, Canada. Contact Courtesy Aircraft to schedule a showing! SPECIFICATIONS SUBJECT TO VERIFICATION UPON INSPECTION. PRIOR SALE AND/OR REMOVAL FROM THE MARKET WITHOUT NOTICE. Inquire Today Regarding This Aircraft This aircraft is currently available for purchase. If you’re interested, don’t delay.  (815) 229-5112 ASK A QUESTION

N4434P HAWKER FURY PROJECT “Furias”

HAWKER FURY PROJECT “FURIAS” N4434P S/N WH 589 R-4360 POWERED Courtesy Aircraft Sales $375,000 USD Call (815) 229-5112, or Email Us Below: (815) 229-5112 Contact Us Description Great opportunity to purchase a well-known RENO racer. The aircraft is very complete but was damaged in hard landing at Reno in 2012. Furias qualified at 467.287 that year. The aircraft has a long racing history back to 1985. Originally operated by the Royal Australian Navy the aircraft that was imported into the US in the 70’s.  Damaged Items Outer wing panelsCenter section – will require reskin and internal repairs (mod. 30 completed)FlapsLanding gearEngine will require teardown due to prop strikeFuselage has some damage to skins and longeronsMinor damage to ailerons  Known Missing Items Land based Fury- No wing fold or tail hook mechanism- wings can be folded manuallyPropeller blades and hubGarmin GPS/COM#2 COMTransponder  Updates and options Auxiliary Hydraulic pump500 X 5 tailwheel conversion200 channel telemetry system with install sensors(base unit is rentable from McLaren Racing)Boil off cooling for oil system (wing mounted oil coolers removed)ADIInner wing leading edge carbon fiber construction with 28-gallon fuel tanksF-102 Hydraulic BrakesHigh Pressure OxygenSlaved HSI  Also included Spare parts-exhaust system, accessories, airframe parts(no inventory)Aircraft records and manualsSome of the parts to return the fuselage to stockR-4360 engine core disassembled and stored at Anderson Airmotive  Remarks Aircraft is in Kenosha, Wisconsin. Contact Courtesy Aircraft to Schedule a Showing!  SPECIFICATIONS SUBJECT TO VERIFICATION UPON INSPECTION. ALL AIRCRAFT ARE SUBJECT TO PRIOR SALE OR WITHDRAWAL FROM THE MARKET AT ANYTIME. Inquire Today Regarding This Aircraft This aircraft is currently available for purchase. If you’re interested, don’t delay.  (815) 229-5112 ASK A QUESTION

HAWKER FURY FB-10 PROJECT

HAWKER FURY FB-10 PROJECT N59SF S/N 37755 Courtesy Aircraft Sales $475,000 USD Call (815) 229-5112, or Email Us Below: (815) 229-5112 Contact Us Description Great opportunity to purchase a very complete Hawker Fury project. Formerly operated by the Iraqi Air Force, the aircraft was imported into the US in the late 70’s. This is one of the few remaining unrestored airframes and is in outstanding, undamaged condition. The aircraft could be restored to its original Bristol Centaurus engine or converted to R-2800 or R-3350 power  Major Parts Included FuselageControl surfacesLanding gear and gear doorsFirewall forward including core Bristol engine, cowling, accessories, engine mount, plumbing etc.CanopySeatDowty Prop hubCockpit furnishings- instruments not completeWing fillets and gun bay doorsHydraulic cylinders and valves  Remarks Aircraft is located in CA. Contact Courtesy Aircraft to Schedule a Showing!  Aircraft Profile Hawker Sea Fury Profile.pdf Known Missing Items Land based Fury- No wing fold or tail hook mechanismUpper and lower accessory cowlsPropeller blades  Also Available(at extra cost): R-3350 conversion kit- mount, cowl brackets, carb deck, oil tank, exhaust stubs- $35,000R-3350 engine overhauled by Anderson- Outright cost today $140,000- will sell for $120,000 to project buyer  SPECIFICATIONS SUBJECT TO VERIFICATION UPON INSPECTION. ALL AIRCRAFT ARE SUBJECT TO PRIOR SALE OR WITHDRAWAL FROM THE MARKET AT ANYTIME. Inquire Today Regarding This Aircraft This aircraft is currently available for purchase. If you’re interested, don’t delay.  (815) 229-5112 ASK A QUESTION
